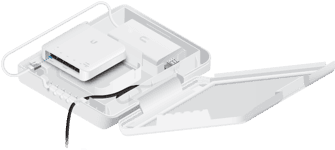

--- title: "2.0 Tennis: Technical specs & scope of delivery" description: Learn everything you need to know about the Wingfield Box before installation. image: https://help.wingfield.io/hubfs/Preview%20Images/headerHelpcenter.jpg --- [Skip to content](https://help.wingfield.io/en/wingfield-box#main-content) - [English](https://help.wingfield.io/en/wingfield-box) - [Deutsch](https://help.wingfield.io/wingfield-box) English Show submenu for translations [![icon](https://help.wingfield.io/hubfs/icon.svg)](https://help.wingfield.io/en?hsLang=en) Open main navigation Close main navigation - - [English](https://help.wingfield.io/en/wingfield-box) - [Deutsch](https://help.wingfield.io/wingfield-box) English Show submenu for translations - [Contact us](mailto:service@my-wingfield.com) [Contact us](mailto:service@my-wingfield.com) Hey! How can we help you? - There are no suggestions because the search field is empty. 1. [Wingfield Help Center](https://help.wingfield.io/en?hsLang=en) 2. [Installation](https://help.wingfield.io/en/installation?hsLang=en) 3. [Installation Guide Wingfield Box (Tennis)](https://help.wingfield.io/en/installation?hsLang=en#installation-guide-wingfield-box-tennis) July 25, 2024 # 2.0 Tennis: Technical specs & scope of delivery ## Learn everything you need to know about the Wingfield Box before installation. ### Part 1 | Technical specs ⚙️ --- ### ![](https://help.wingfield.io/hs-fs/hubfs/WingfieldPickleball-jpg.jpeg?width=688&height=387&name=WingfieldPickleball-jpg.jpeg) | **Wingfield Box** | | | --- | --- | | **Measures** | 120x40x40cm | | **Weight** | 30kg | | **Material** | Aluminum, synthetic material | | **Power** | 230V | | **Internet** | LAN (an upload speed of at least 10 mbit/s is recommended) | | **Robustness** | Outdoor-ready and weather-resistant. Operating temperature from -5 to 35 C°. | ![logos](https://help.wingfield.io/hs-fs/hubfs/Bildschirmfoto%202020-11-02%20um%2017-31-16-png.png?width=600&name=Bildschirmfoto%202020-11-02%20um%2017-31-16-png.png) **☝🏼By the way:** The system is designed to be used both outdoors and indoors. To withstand wind and weather, particularly robust materials have been used. The Wingfield Box is also approved by the International Tennis Federation (ITF) and thus meets the criteria for Player Analysis Technology (PAT). #### ![powersupply](https://help.wingfield.io/hs-fs/hubfs/Bildschirmfoto%202020-10-29%20um%2016-27-17-png.png?width=300&name=Bildschirmfoto%202020-10-29%20um%2016-27-17-png.png)**Power connection** The Wingfield Box requires a separate power connection. Its maximum output is approx. 140W. Its maximum power is approx. 140W. For power consumption, 5W can be expected on standby and 70W during use. **⚠️ Attention: For your outdoor courts, please use the supplied waterproof plug connection (Schuko plug type F—**see picture). #### ![ethernetport](https://help.wingfield.io/hs-fs/hubfs/Bildschirmfoto%202020-10-29%20um%2016-27-22-png.png?width=300&name=Bildschirmfoto%202020-10-29%20um%2016-27-22-png.png)Ethernet connection The Wingfield Box has a waterproof LAN connection, so you can connect it directly via cable to your router or a **[Wingfield Baseline Camera](https://help.wingfield.io/en/ip-camera?hsLang=en)**. A waterproof adapter for your LAN cable is included in the **[scope of delivery](https://help.wingfield.io/en/wingfield-box#scope-of-delivery)**. **⚠️ Attention:** If you want to connect the Wingfield Box to your router via LAN cables, make sure they are of type CAT6 (or better). Transfer rates of up to 1 Gbit/s should be guaranteed. **☝🏼By the way:** All Wingfield Boxes delivered from April 2023 onwards will also have an integrated WLAN module. ### ![IP header](https://help.wingfield.io/hs-fs/hubfs/IP%20header.jpg?width=688&height=458&name=IP%20header.jpg) | **Baseline Camera** | | | --- | --- | | **Measures** | 20x20cm | | **Weight** | 2,6kg | | **Material** | Aluminum, synthetic material | | **Connections** | The camera is connected via LAN cable (CAT6a or better) to the PoE-switch and thus directly supplied with power. | | **Video quality** | Recordings are uploaded at 720p to ensure faster upload speeds. | | **Sound** | The Baseline Camera has an integrated shotgun microphone. | | **Resilience** | Outdoor-ready and weather-resistant.  |   ### Part 2 | Scope of delivery 📦 --- ### ![delivery-jpg](https://help.wingfield.io/hs-fs/hubfs/delivery-jpg.jpeg?width=688&height=459&name=delivery-jpg.jpeg) | **Wingfield Box** | | | --- | --- | | **IT-Module (Wingfield Box Brain)** *Wingfield Box head incl. tracking cameras, processor unit, touch display, and additional power socket.* | ![Brain transparent](https://help.wingfield.io/hs-fs/hubfs/Brain%20transparent.png?quality=low&width=179&height=179&name=Brain%20transparent.png)   | | **Net post module (Wingfield Box body)** *Replaces the net post without a tensioning mechanism. * | ![Body transparent](https://help.wingfield.io/hs-fs/hubfs/Body%20transparent.png?quality=low&width=150&name=Body%20transparent.png)   | | **Waterproof power cable (15m)** *Rubber cable with IP68-protected earthing contact plugs.* | ![15m IP68 Schuko - IP68 Schuko trasnparent](https://help.wingfield.io/hs-fs/hubfs/15m%20IP68%20Schuko%20-%20IP68%20Schuko%20trasnparent.png?quality=low&width=150&name=15m%20IP68%20Schuko%20-%20IP68%20Schuko%20trasnparent.png) | | **Net post adapter** *To install the net post module in standard ground sockets: 76mm / 82.5mm / 80x80mm.* | ![AiO Adapter transparent](https://help.wingfield.io/hs-fs/hubfs/AiO%20Adapter%20transparent.png?quality=low&width=150&name=AiO%20Adapter%20transparent.png)   | | **Mounting kit IT-Module** *Screws and a special screwdriver to install the IT module and LAN cable, incl. waterproof attachment.* | ![Brain mounting kit transparent](https://help.wingfield.io/hs-fs/hubfs/Brain%20mounting%20kit%20transparent.png?quality=low&width=150&name=Brain%20mounting%20kit%20transparent.png)   | | **Floor cover ** *To cover cables leading from the Wingfield Box to the edge of the court (3m).* | ![Cable bridge](https://help.wingfield.io/hs-fs/hubfs/Cable%20bridge.png?width=163&height=163&name=Cable%20bridge.png)   |   **⚠️ Attention:** The following parts only apply to a fully equipped Wingfield Court. | **Baseline Camera** | | | --- | --- | | **Wingfield Baseline Camera** *Incl. mounting plate* | ![Baseline Camera transparent-1](https://help.wingfield.io/hs-fs/hubfs/Baseline%20Camera%20transparent-1.png?quality=low&width=150&height=150&name=Baseline%20Camera%20transparent-1.png)   | | **1x Mounting kit Baseline Camera** *for mounting the Baseline Camera on fences, poles, beams, and walls.* | ![Baseline Camera Mounting Kit transparent](https://help.wingfield.io/hs-fs/hubfs/Baseline%20Camera%20Mounting%20Kit%20transparent.png?quality=low&width=150&height=150&name=Baseline%20Camera%20Mounting%20Kit%20transparent.png)   | | **Outdoor LAN Set** *40m outdoor LAN cable, including protective caps for winter and waterproof connectors for extra long distances.* | ![Outdoor LAN Set](https://help.wingfield.io/hs-fs/hubfs/Outdoor%20LAN%20Set.png?quality=low&width=188&height=149&name=Outdoor%20LAN%20Set.png) | **☝🏼 By the way:** Since the conditions are different at each court, we have assembled various mounting options for you. For example, you can mount the camera directly on the wall or a fence post with our pole mounts. | **PoE-switch** | | | --- | --- | | **Premium PoE-switch** *5x RJ45 slots (1x occupied by power supply) with PoE 802.3 af.* | ![USW-Flex-Front](https://help.wingfield.io/hs-fs/hubfs/USW-Flex-Front.png?quality=low&width=150&height=150&name=USW-Flex-Front.png)   | | **Outdoor housing** *Protection and power supply for the PoE switch.* | ![USW-Flex-Utility_Connect_Ethernet_to_Switch](https://help.wingfield.io/hs-fs/hubfs/USW-Flex-Utility_Connect_Ethernet_to_Switch.png?quality=low&width=335&height=150&name=USW-Flex-Utility_Connect_Ethernet_to_Switch.png)   | | **Mounting kit PoE-switch** *To easily mount the switch inside the Wingfield Box housing.* | ![PoE-Switch mounting kit transparent](https://help.wingfield.io/hs-fs/hubfs/PoE-Switch%20mounting%20kit%20transparent.png?quality=low&width=150&height=150&name=PoE-Switch%20mounting%20kit%20transparent.png)   | |   **Special power cable (1m)** *Waterproof connection of the switch (orange).* | ![3m IP68 Schuko - 3-Pol Terminal transparent](https://help.wingfield.io/hs-fs/hubfs/3m%20IP68%20Schuko%20-%203-Pol%20Terminal%20transparent.png?quality=low&width=150&height=150&name=3m%20IP68%20Schuko%20-%203-Pol%20Terminal%20transparent.png) | **💡Tip: **The PoE switch connects your Wingfield Box to your Baseline Camera. To minimize the cabling at the court, we recommend mounting the switch inside the Wingfield Box housing.   ### Installation guide 🔧 **Now that you have an overview, we will guide you through the installation of your Wingfield Box step by step:** - [**1️⃣** Set up the Wingfield Box ](https://help.wingfield.io/en/setup-wingfield-box?hsLang=en) - 2️⃣[Connect the Wingfield Box to the internet](https://help.wingfield.io/en/wingfield-box-online?hsLang=en) - 3️⃣[ Calibrate your Wingfield Box](https://help.wingfield.io/en/calibration?hsLang=en) [![WB button](https://help.wingfield.io/hs-fs/hubfs/WB%20button.png?width=687&height=171&name=WB%20button.png)](https://help.wingfield.io/en/setup-wingfield-box?hsLang=en) --- #### ![Bildschirm­foto 2022-12-08 um 11-36-00-png](https://help.wingfield.io/hs-fs/hubfs/Bildschirm%C2%ADfoto%202022-12-08%20um%2011-36-00-png.png?width=121&height=54&name=Bildschirm%C2%ADfoto%202022-12-08%20um%2011-36-00-png.png) #### You are standing on the court and don't know what to do? We are here for you! **📞 Service hotline:** [+49 (0) 511 51525901](tel:+4951152525901) **💬 WhatsApp: ** [click here](https://wa.me/message/IZ2CTUJIXCGZK1) **📨 E-Mail:** [service@wingfield.io](mailto:service@wingfield.io)     - [First steps with Wingfield](https://help.wingfield.io/en/first-steps-with-wingfield?hsLang=en#main-content) - [Before Your First Wingfield Session](https://help.wingfield.io/en/first-steps-with-wingfield?hsLang=en#before-your-first-wingfield-session) - [On the court](https://help.wingfield.io/en/first-steps-with-wingfield?hsLang=en#on-the-court) - [About the Wingfield app](https://help.wingfield.io/en/about-the-wingfield-app?hsLang=en#main-content) - [👤 Account & roles](https://help.wingfield.io/en/about-the-wingfield-app?hsLang=en#account-roles) - [💬 App FAQ's](https://help.wingfield.io/en/about-the-wingfield-app?hsLang=en#app-faqs) - [📲 Updates](https://help.wingfield.io/en/about-the-wingfield-app?hsLang=en#updates) - [DUPR](https://help.wingfield.io/en/about-the-wingfield-app?hsLang=en#dupr) - [Installation](https://help.wingfield.io/en/installation?hsLang=en#main-content) - [Preparations](https://help.wingfield.io/en/installation?hsLang=en#preparations) - [Installation Guide - Streaming Camera](https://help.wingfield.io/en/installation?hsLang=en#installation-guide-streaming-camera) - [Installation Guide - Court Terminal](https://help.wingfield.io/en/installation?hsLang=en#installation-guide-court-terminal) - [Installation Guide - Dual Tracking Camera](https://help.wingfield.io/en/installation?hsLang=en#installation-guide-dual-tracking-camera) - [Troubleshooting](https://help.wingfield.io/en/installation?hsLang=en#troubleshooting) - [Maintenance & Upgrades](https://help.wingfield.io/en/installation?hsLang=en#maintenance-upgrades) - [Installation Guide Wingfield Box (Tennis)](https://help.wingfield.io/en/installation?hsLang=en#installation-guide-wingfield-box-tennis) - [Installation Guide Wingfield Box (Pickleball)](https://help.wingfield.io/en/installation?hsLang=en#installation-guide-wingfield-box-pickleball) - [Coach Corner](https://help.wingfield.io/en/coach-corner?hsLang=en#main-content) - [Tools for coaches](https://help.wingfield.io/en/coach-corner?hsLang=en#tools-for-coaches) - [Coaching with Wingfield](https://help.wingfield.io/en/coach-corner?hsLang=en#coaching-with-wingfield) - [Blueprints for Drills](https://help.wingfield.io/en/coach-corner?hsLang=en#blueprints-for-drills) - [Club resources](https://help.wingfield.io/en/club-resources?hsLang=en#main-content) - [Financing & refinancing](https://help.wingfield.io/en/club-resources?hsLang=en#financing-refinancing) - [Marketing](https://help.wingfield.io/en/club-resources?hsLang=en#marketing) - [Admin dashboard](https://help.wingfield.io/en/club-resources?hsLang=en#admin-dashboard) - [Operations](https://help.wingfield.io/en/club-resources?hsLang=en#operations) - [DTB LK-Matches](https://help.wingfield.io/en/dtb-lk-matches?hsLang=en#main-content) - [Basics](https://help.wingfield.io/en/dtb-lk-matches?hsLang=en#basics) - [DTB rules](https://help.wingfield.io/en/dtb-lk-matches?hsLang=en#dtb-rules) - [Match validation](https://help.wingfield.io/en/dtb-lk-matches?hsLang=en#match-validation) - [Marketing tips for clubs](https://help.wingfield.io/en/dtb-lk-matches?hsLang=en#marketing-tips-for-clubs) - [FAQ](https://help.wingfield.io/en/faq?hsLang=en) - [Campaigns](https://help.wingfield.io/en/campaigns?hsLang=en) - [General](https://help.wingfield.io/en/general?hsLang=en) [![Logos-WF-Glyph](https://help.wingfield.io/hubfs/Logos-WF-Glyph.svg "Logos-WF-Glyph")](https://help.wingfield.io/?hsLang=en) Copyright © 2025, © Wingfield GmbH
