2.1 Pickleball: Set up the Wingfield Box

In these simple steps, we set up the Wingfield Box. 🔧

👣 Step 1 | Fix the Wingfield Box to the ground



🛠️ In this step, you will need:
Wingfield Box Body
Ground plate (part of the Wingfield Box Body)
4x Ground anchors (in the plastic bag attached to the ground plate)
Drill or rotary hammer
Allen key (we recommend having a bit set with you)



1️⃣ Remove the ground plate:

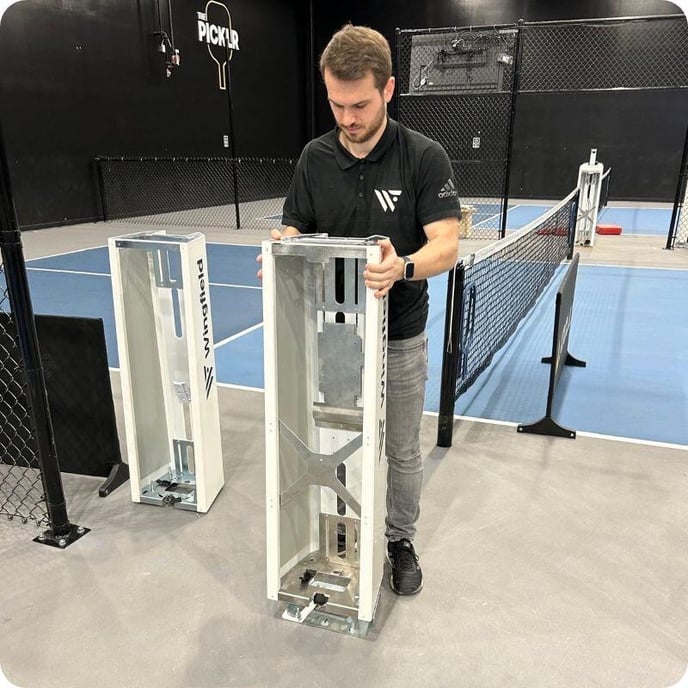

Remove the four screws at the bottom of the Wingfield Box Body to take off the ground plate. The four ground anchors in the plastic bag (see picture below) are needed in the next step to anchor the ground plate to the floor.

2️⃣ Drill holes:

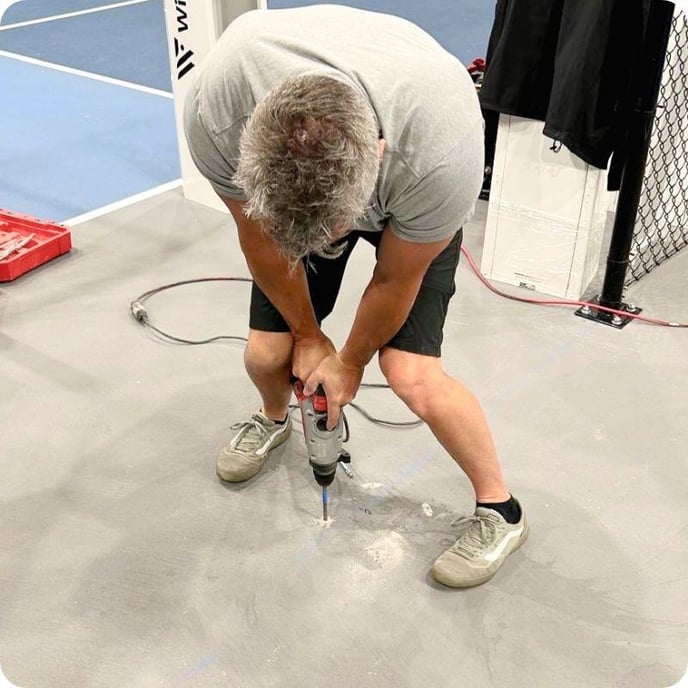

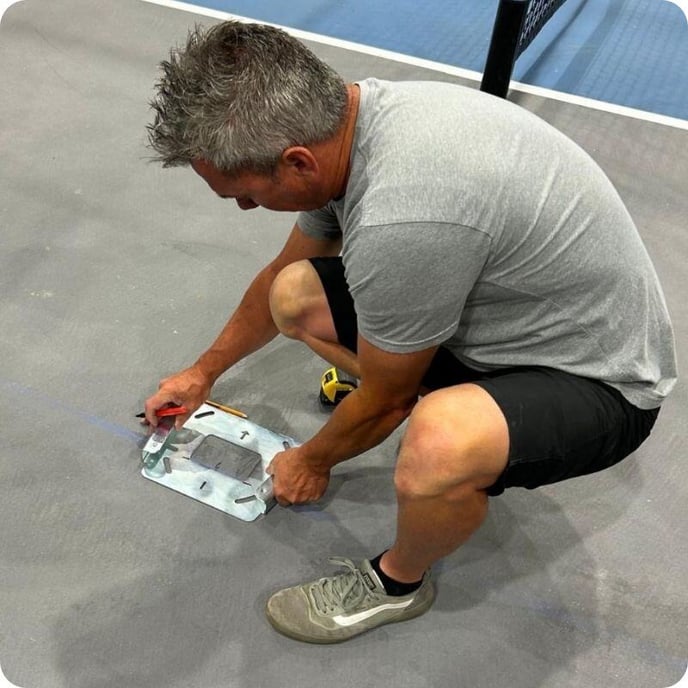

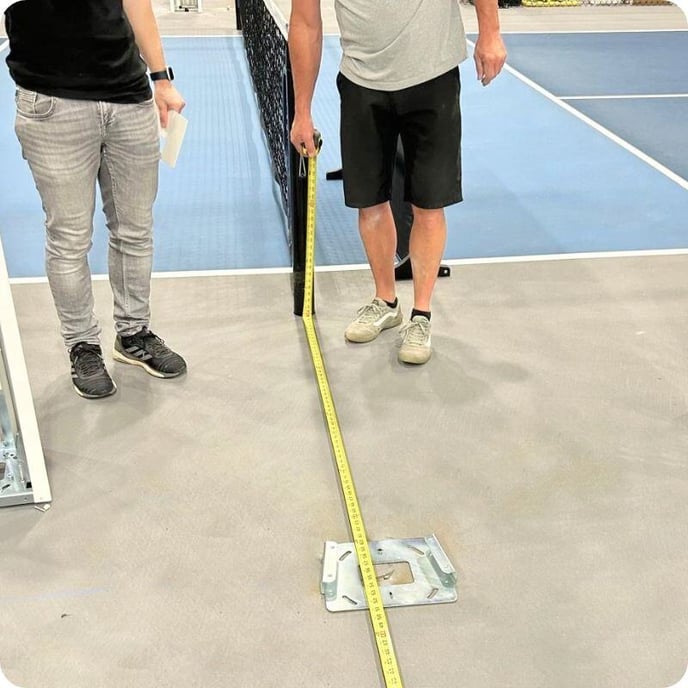

Place the ground plate 6 feet from the court line and Drill four holes. Ensure the plate is centered, and the arrow on the plate points straight to the court so the Wingfield Box is not tilted later (see picture below).

💡Pro tip: Mark the length of the anchors on your drill (e.g. with tape) so that you drill deep enough.

3️⃣ Mount the ground plate:

Use the four ground anchors to attach the ground plate to the floor.

4️⃣ Mount the Wingfield Box Body:

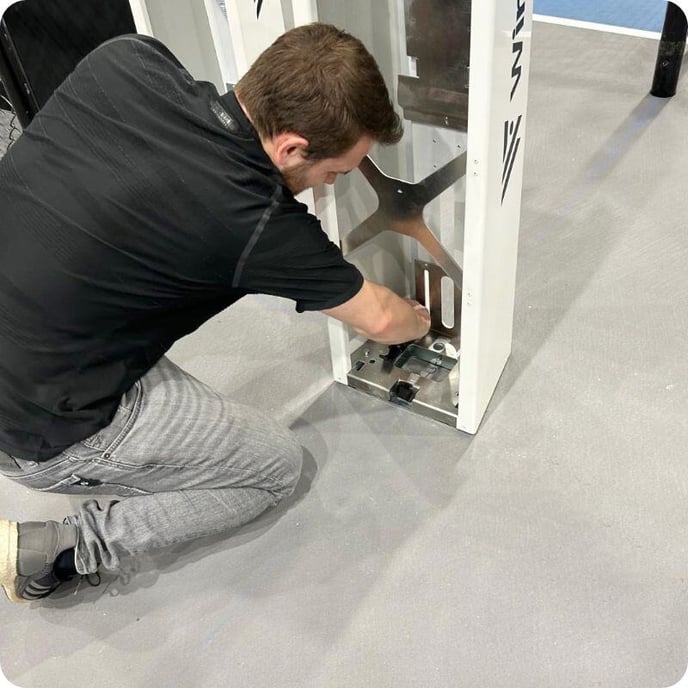

Screw the Wingfield Box back onto the plate with the four screws you removed in the first step.

Come on! 🎉 Step 1 completed!

via GIPHY


      👣 Step 2 | Mount the touch display to the Wingfield Box



      🛠️ In this step, you will need:
      Wingfield Box Body
      Dual Camera Module (incl. 4 screws)
      Display mount (incl. 4x screws and cover plate)
      Touch display (incl. 4x screws, 1x power cable, 1x PC USB cable, 1x HDMI cable)
      Allen key (we recommend having a bit set with you)
      Cutter knife

      1️⃣ Attach the Dual Camera Module to the Wingfield Box Body:

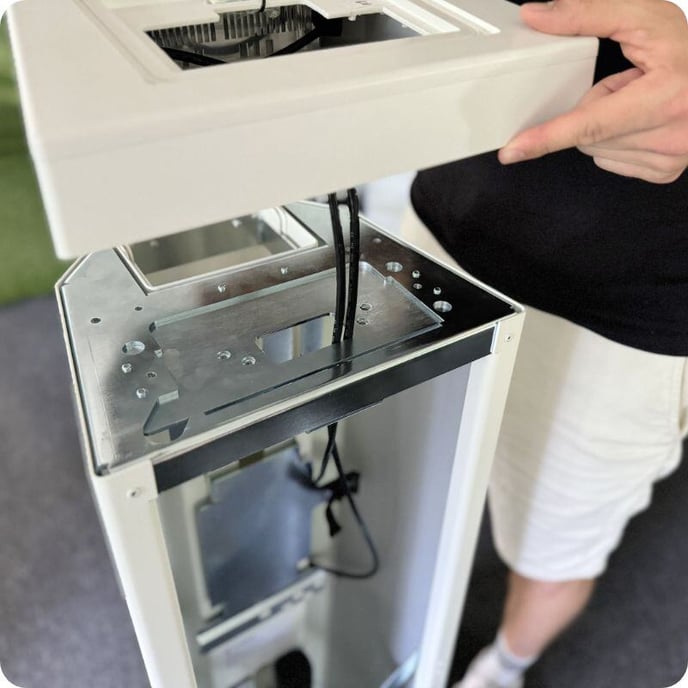

      Remove the four black screws from the Wingfield Box body (see picture below)

      Put the Dual Camera Module onto the Wingfield Box Body where you have just removed the screws. Fix it from the bottom with its own four screws.

      ⚠️ Attention: Ensure that the USB cables of the tracking cameras run through the hole.

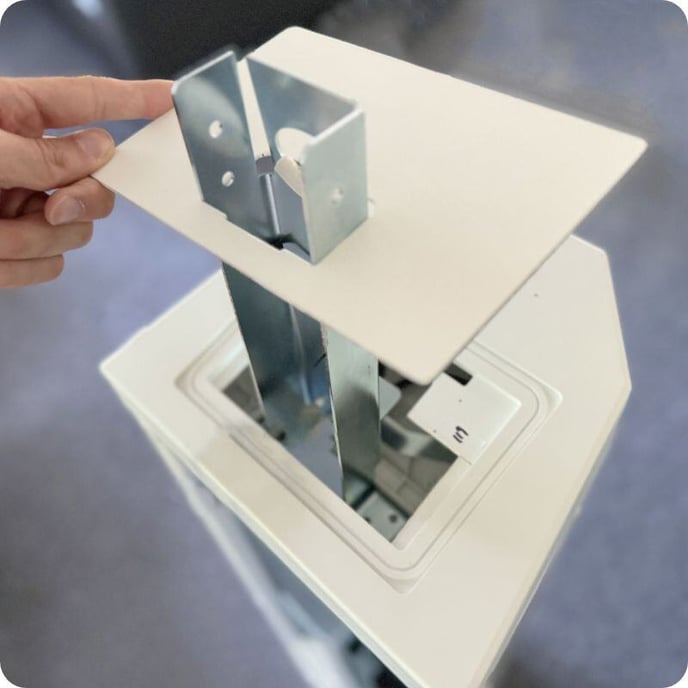

      Remove the black screw from the small contact surface of the Display Mount. Now push the cover plate over the Display Mount down to the Dual Camera Module. Fasten the plate with the black screw you just removed from the Display Mount.

      💡Pro tip: If the plate does not slide directly into the hole, pull the Display Mount slightly backward to relieve tension on the plate and then press the plate into the hole again.



      2️⃣ Run the cables through the Display Mount

      Attach the three front parts of the aluminum casing to the Display Mount again. Leave the backside open to better run the following three cables of the Elo Touch Display through the Display Mount down inside the Wingfield Box Body:
      • Power cable (Elo Touch Display)
      • PC USB cable (Elo Touch Display)
      • HDMI cable (Elo Touch Display)

      3️⃣ Attach the Touch Display:

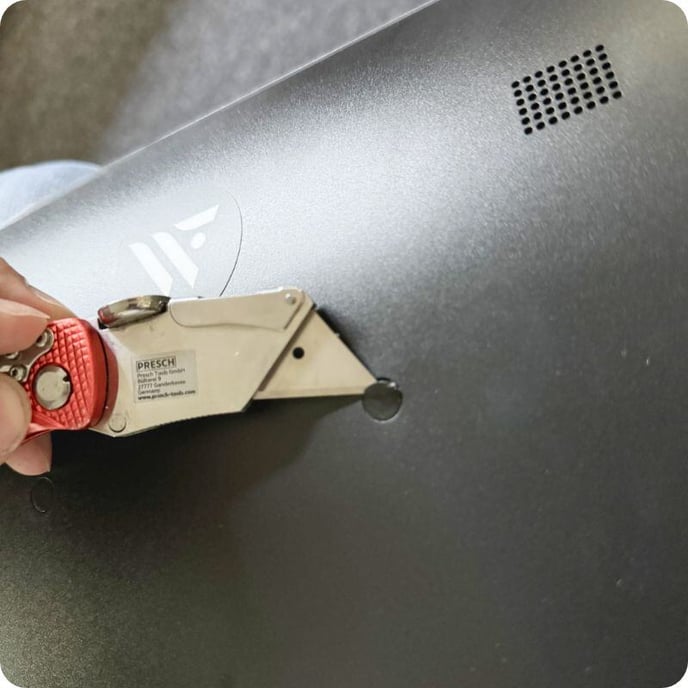

      Carefully remove the adhesive dots from the screen with a cutter knife to expose the screws underneath. Attach the screen to the display mount using these screws.

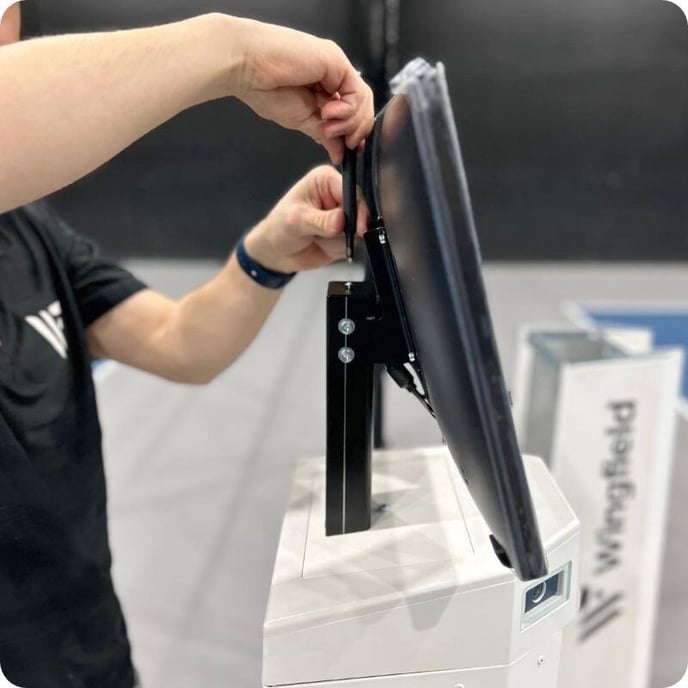

      💡Pro tip: Remove the bottom two screws and unscrew the top two screws only halfway so that you can easily hook the screen into the display mount from above. Then screw the screen tight with all the screws.

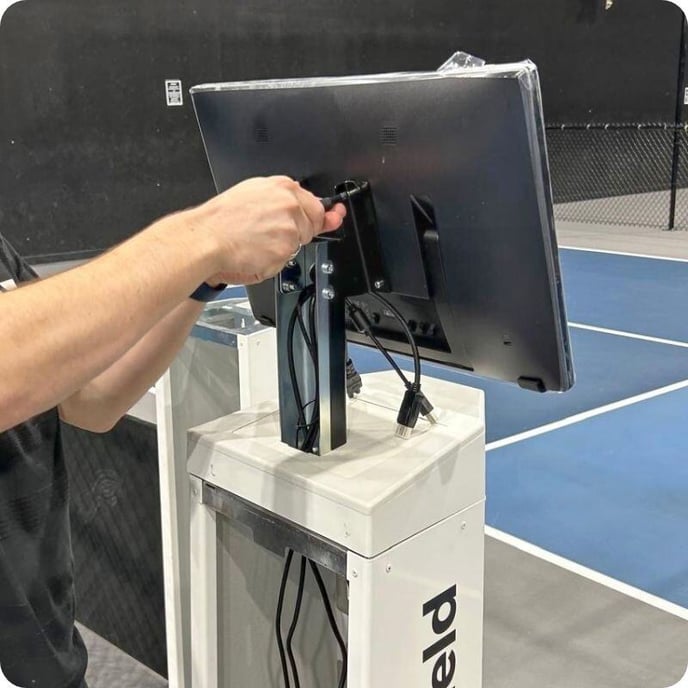

      Mount the missing part of the aluminum casing to the backside of the Display Mount. Plug all cables into the Touch Display.

      That was a hell of a ride! But you finally got this!! 😮‍💨

      via GIPHY



      👣 Step 3 | Attach the PC to the Wingfield Box



      🛠️ In this step, you will need:
      Wingfield Box Body
      Vesa Mount (incl. 4x screws)
      DELL PC
      Allen key (we recommend having a bit set with you)
      Wingfield Box power cable
      Dell PC power cable/power supply unit

      1️⃣ Prepare the Vesa Mount

      Remove the black screw on the bottom of the Vesa mount and take it off from the Wingfield Box Body.

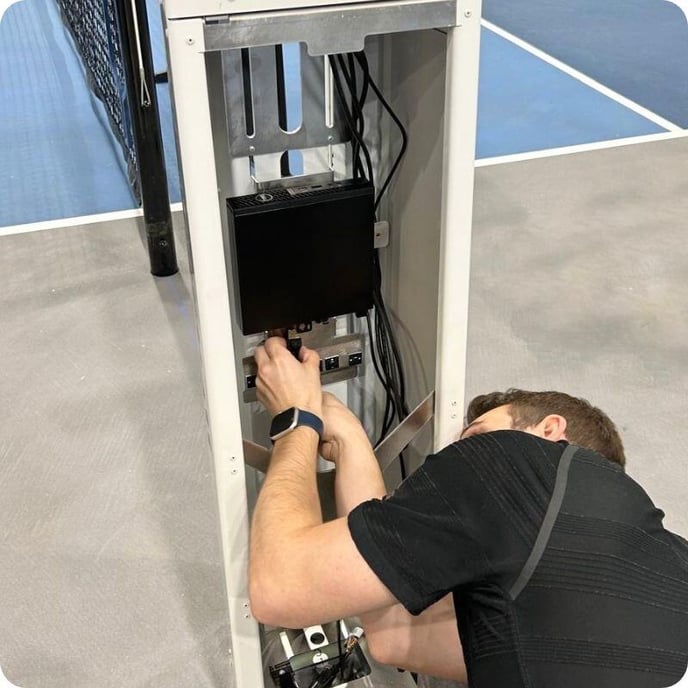

      Mount the PC to the Vesa Mount using the four black screws of the Vesa Mount. Hang it back into the Wingfield Box Body and fasten it again with the black screw.

      ⚠️ Attention: Make sure that the ports for the cables are facing upwards.

        2️⃣ Connect the Wingfield Box

        Plug in the following cables into the Dell PC:

        • 2x USB cables of the Dual Camera Module ➡️ Dell PC
        • 1x PC USB cable from the Touch Display ➡️ Dell PC
        • 1x HDMI cable from the Touch Display ➡️ Dell PC
        • 1x Power cable of the Dell PC ➡️ Dell PC

        Plug the following power cables into the power sockets ⚡️

        • 1x Power cable from the Touch Display ➡️ power socket
        • 1x Power cable from the Dell PC ➡️ power socket

        Plug the power cable (of the socket) into your power outlet. Give the Wingfield Box a few seconds to wake up. 🥱

        In the meantime, use the Velcro fastener to attach the power supply unit of the Dell PC to the Wingfield Box Body. Stick a stripe velcro fastener to the power supply unit and attach it to the stripe inside the Wingfield Box. (see picture below).


         🎉 Great, you have mounted your Wingfield Box. Let's move forward with the PoE switch.

        via GIPHY

        Installation guide🔧

        We'll guide you step by step through the installation of your Wingfield Box:

        • 1️⃣ Set up the Wingfield Box (Pickleball) ✔️
        • 2️⃣ Connect the Wingfield Box to the internet
        • 3️⃣ Calibrate your Wingfield Box

        ➡️ Continue with: Connect the Wingfield Box to the Internet
